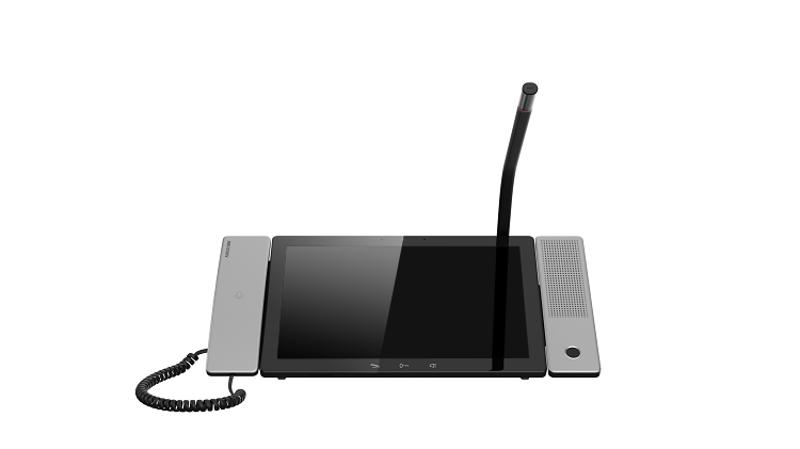

Hikvision 10-inch network paging microphone (DS-QAZ1MP10G1)

Name: Hikvision 10-inch network paging microphone (DS-QAZ1MP10G1)
Brand: Hikvision
SKU: DS-QAZ1MP10G1
Availability: InStock

Hikvision DS-QAZ1MP10G1 audio zone controller. Manages and controls audio output in specific zones for efficient PA systems.

SKU: DS-QAZ1MP10G1 Category: Audio Products Brand: Hikvision

Guaranteed Safe Checkout

The Hikvision DS-QAZ1MP10G1 is a professional audio zone controller for public address (PA) systems. It allows for the management and control of audio output in specific zones, ensuring targeted and efficient broadcasting. The device is built for seamless integration with Hikvision PA system components, offering flexible configuration and reliable performance.

Specifications

Type: electret; Frequency Response: 50 Hz to 16 kHz; Sensitivity: -42 dB±2 dB (0db=1V/Pa at 1KHz); Impedance: Output Impedance: 680 Ω (at 1KHz); Speaker Type: 1. Built-in Speaker:
Rated Impedance: 8 Ω
Rated Power: 1 W
Resonant Frequency: 950 Hz
Sensitivity: 93 dB (Test Condition: 0.1 m @1 W)

2. Earpiece:
Rated Impedance: 6 Ω
Rated Power: 0.1 W
Resonant Frequency: 650 Hz
Sensitivity: 94 dB (Test Condition: 0.1 m @1 W)

3. External Speaker
Rated Impedance: 8 Ω
Rated Power: 2 W
Resonant Frequency: 650 Hz
Sensitivity: 100 dB (Test Condition: 0.1 m @1 W); Audio File Format: Format: MP3, WAV
Bit Width: 16bit
Maximum Single File Size: 100 MB; Network Protocol: ISAPI, SNTP; Alarm: 2; Network Interface: 2; Button: Touch button; RS-485: 1; Display Screen: Type: IPS
Size: 10.1 inches
Resolution: 1280 × 800
Touch: Support; Power: 12 VDC, Standard POE, 12 W; Operating Condition: -10 °C to +50 °C(14 °F to 122 °F), humidity 10% to 90%; Dimension: 246 mm × 166 mm × 32 mm (9.69″ × 6.54″ × 1.26″) (L × W × H); Package Dimension: 474 mm × 345 mm × 85 mm (18.66″ × 13.58″ × 3.35″) (L × W × H); : 1.28 kg (2.82 lb.); With Package Weight: 2.53 kg (5.58 lb.)
