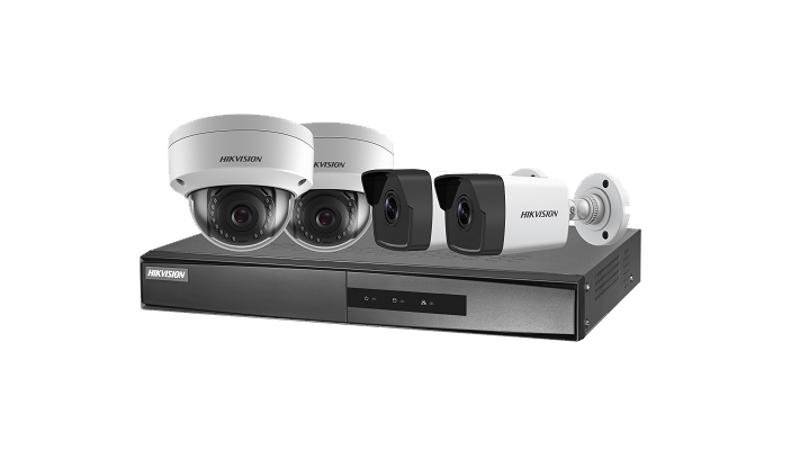

Hikvision 2MP Bullet/Dome PoE Kit NK42E3H-1T(WD)

Specifications

Camera Case Type: Bullet;Dome; Image Sensor: 1/2.8″ Progressive Scan CMOS; Min. Illumination: 0.028 Lux; Shutter Speed: 1/3 s to 1/100,000 s; Day &Night: IR cut filter; WDR: DWDR; Angle Adjustment: Bullet: Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°
Dome: Pan: 0° to 355°, tilt: 0° to 75°; Protection Level: IP67; Material: Bullet: Front cover: metal, back cover & bracket: plastic
Dome: Front cover: plastic, back cover & bracket: metal; Wi-Fi Support: No; Focal Length: 2.8 mm; Aperture: F2.0; Focus: Fixed; FOV: Horizontal FOV: 114.8°, vertical FOV: 62°, diagonal FOV: 135.5°; Lens Mount: M12; IR Range: Up to 30 m; Video Compression: H.265+;H.265;H.264+;H.264;MJPEG; H.264 Type: Main Profile/High Profile/Baseline Profile; H.264+: Main Profile; H.265 Type: Main Profile; H.265+: Main Profile; Video Bit Rate: 32 Kbps to 8 Mbps; Max. Resolution: 2MP; Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720); Sub-stream: 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240); Image Setting: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser; Day/Night Switch: Auto/Scheduled/Day/Night; Alarm Trigger: Motion detection, video tampering alarm, illegal login; Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP; General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark; Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500; Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port; On-board Storage: N/A; Audio I/O: No; Video Out: No; Alarm I/O: No; Reset Button: No; Power Supply: 12 VDC ± 25%, Φ 5.5 mm coaxial plug power, or PoE (802.3af, class 3); Consumption: Bullet: 12 VDC, 0.3 A, Max: 3.5 W, or PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W
Dome: 12 VDC, 0.4 A, Max: 5 W, or PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W; Working Temperature: -30 °C to 60 °C (-22 °F to 140 °F); Working Humidity: 95% or less (non-condensing); Dimension (W × D × H): Bullet: Ø 70 mm × 172.7mm (2.8″ × 6.8″)
Dome: Ø 111 mm × 82.4 mm (4.4″ × 3.2″); : Bullet: Approx. 270 g (0.6 lb)
Dome: Approx. 400 g (0.9 lb); IP Video Input: 4-ch; Incoming/Outgoing Bandwidth: 40 Mbps/60 Mbps; HDMI/VGA Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; Decoding Format: H.265+;H.265;H.264+;H.264; Capability: 2-ch@1080p/1-ch@4 MP; Network Interface: 1, RJ45 10/100M Ethernet interface; Network Protocol: IPv6, UPnP™, NTP, SADP, DHCP; Remote Connection: 16; Interface: 4-ch; Power: ≤ 36 W; Standard: IEEE 802.3 af/at; SATA: 1; Capacity: Up to 6 TB capacity for each disk; USB Interface: Rear panel: 2 × USB 2.0; Alarm In/Out: No; Power Supply: 48 VDC; Consumption (without HDD and PoE off): ≤ 10 W; Working Temperature: -10 °C to 55 °C (14 °F to 131 °F); Working Humidity: 10% to 90%; Dimension (W × D × H): 265 × 225 × 48 mm (10.4″ × 8.9″ × 1.9″); Weight (without hard disk): ≤ 1 kg (2.2 lb); Accessories: Power: 1 power cable
Network cable: 4 × 18.3 m (60 ft) video and power cable
HDMI cable: 1 HDMI cable; Hard Drive: Pre-installed 1 TB HDD; Certification: FCC, CE; Weight (with package): ≤ 6.5 kg (14.3 lb)
