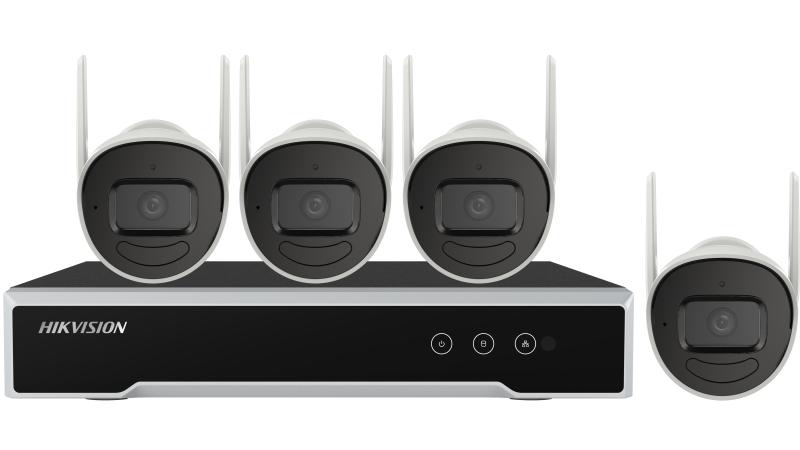

Hikvision 2MP H.265 Bullet WiFi Kit NK42W0H-1T(E)

Specifications

Camera Case Type: Bullet; Image Sensor: 1/2.7″ Progressive Scan CMOS; Min. Illumination: Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR; Shutter Speed: 1/3 s to 1/100,000 s; Day &Night: IR cut filter; WDR: DWDR; Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°; Protection Level: IP66; Material: Front cover: metal, back cover: plastic; Wi-Fi Support: Yes; Focal Length: 2.8 mm; Aperture: F1.6; Focus: Fixed; FOV: 2.8 mm, horizontal FOV: 112°, vertical FOV: 59°, diagonal FOV: 134°; Lens Mount: M12; IR Range: Up to 30 m; Video Compression: Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264; H.265 Type: Main Profile; H.265+: Main stream supports; Video Bit Rate: 32 Kbps to 8 Mbps; Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC; Audio Bit Rate: 64 Kbps(G.711 ulaw)/64 Kbps(G.711 alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)/16-64Kbps(AAC); Audio Sampling Rate: 8 kHz/16 kHz; Environment Noise Filtering: Yes; Max. Resolution: 1920 × 1080; Main Stream: 50Hz: 25 fps (1920 × 1080, 1280 × 720)
60Hz: 30 fps (1920 × 1080, 1280 × 720); Sub-stream: 50Hz: 25 fps (640 × 360)
60Hz: 30 fps (640 × 360); Image Setting: Mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser; Protocols: TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour; General Function: Anti-flicker, heartbeat, password reset via e-mail; Client: iVMS-4200, Hik-Connect; Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port; Audio I/O: 1 Built-in mic; Power Supply: 12 VDC ± 25%, Ø5.5 mm coaxial power plug, reverse polarity protection; Consumption: 12 VDC, 0.5 A, max. 6.0 W; Working Temperature: -30 °C to 60 °C (-22 °F to 140 °F); Working Humidity: 95% or less (non-condensing); Dimension (W × D × H): 175.6 × 73.0 × 89.1 mm (6.9″ × 2.9″ × 3.5″); : 330 g (0.7 lb.); IP Video Input: 4-ch; Incoming/Outgoing Bandwidth: 50 Mbps/40 Mbps; HDMI/VGA Output: 1-ch, resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI/VGA simultaneous output; Audio Output: 1-ch, RCA (linear, 1 KΩ); Video Resolution: 4 MP/3 MP/1080p/1.3 MP/720p; Synchronous Playback: 4-ch; Capability: 4-ch@4 MP (12 fps)/4-ch@1080p (25 fps); Network Interface: 1, RJ45 10/100M Ethernet interface; Network Protocol: IPv6, UPnP™, NTP, SADP, DHCP; Remote Connection: 16; Frequency Band: 2.4 GHz; Antenna Structure: 2 × 2MIMO; Transmission Speed: 144 Mbps; Transmission Standard: IEEE 802.11b/g/n; SATA: 1; Capacity: Up to 6 TB capacity for each disk; USB Interface: Rear panel: 2 × USB 2.0; Power Supply: 12 VDC; Consumption (without HDD and PoE off): ≤ 12 W; Working Temperature: -10 °C to 55 °C (14 °F to 131 °F); Working Humidity: 10% to 90%; Dimension (W × D × H): 265 × 225 × 48 mm (10.4″ × 8.9″ × 1.9″); Weight (without hard disk): ≤ 1.6 kg (3.5 lb.); Accessories: Power cable: 4 × IPC power cables, 1 × NVR power cable
Ethernet cable: RJ45, Cat5e UTP, 1 m. Connects NVR and Switch
HDMI cable: 1 × HDMI cable, 2 m, black; Hard Drive: -1T:Pre-installed 1 TB HDD; Certification: FCC, CE; Weight (with package): ≤ 7 kg (15.4 lb.)
