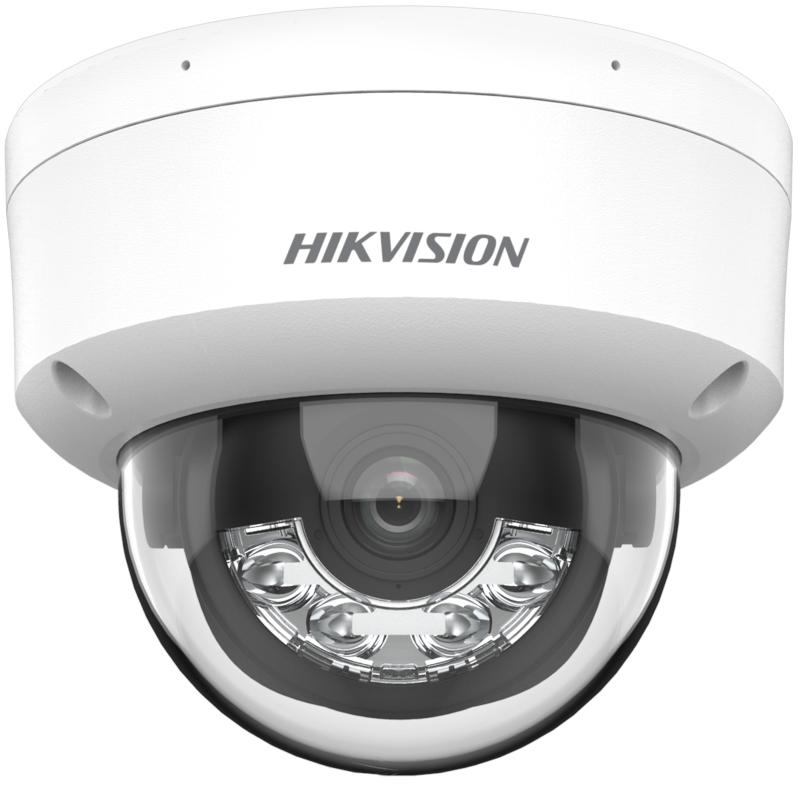

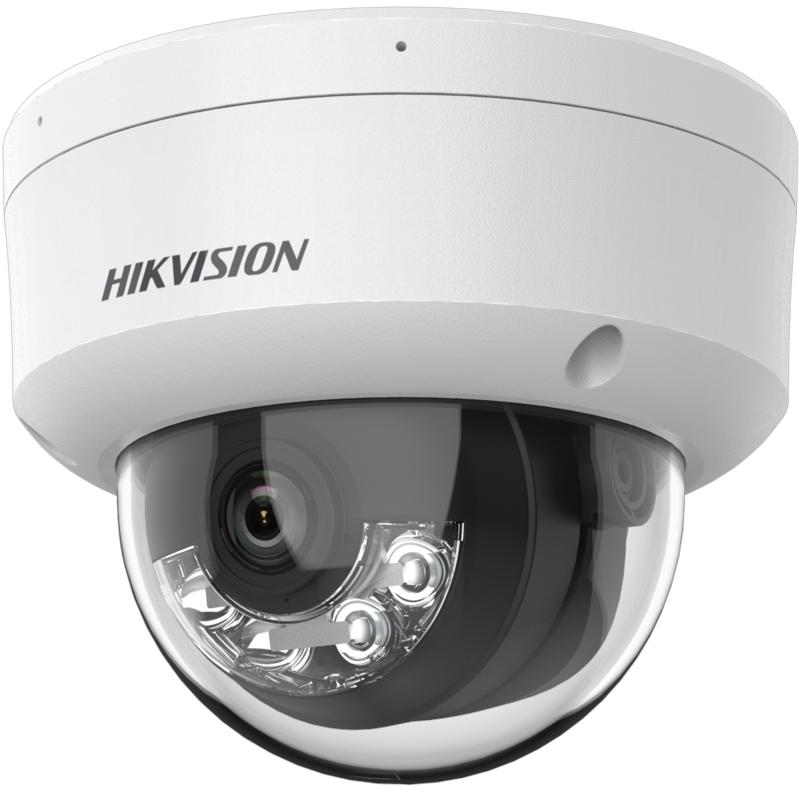

Hikvision 4 MP Smart Hybrid Light Fixed Dome Network Camera

Specifications

Image Sensor: 1/3″ Progressive Scan CMOS; Max. Resolution: 2560 × 1440; Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR; Shutter Time: 1/3 s to 1/100,000 s; Day & Night: IR cut filter; Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°; Lens Type: Fixed focal lens, 2.8 and 4 mm optional; Focal Length & FOV: 2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°; Lens Mount: M12; Iris Type: Fixed; Aperture: F1.6; DORI: 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m; Supplement Light Type: IR,White Light; Supplement Light Range: Up to 30 m; Smart Supplement Light: Yes; IR Wavelength: 850 nm; Main Stream: 50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720); Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360); Video Compression: Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG; Video Bit Rate: 32 Kbps to 8 Mbps; H.264 Type: Baseline Profile,Main Profile,High Profile; H.265 Type: Main Profile; Bit Rate Control: CBR,VBR; Region of Interest (ROI): 1 fixed region for main stream; Audio Type: Mono sound; Environment Noise Filtering: Yes; Audio Sampling Rate: 8 kHz/16 kHz; Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC; Audio Bit Rate: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC); Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address); Simultaneous Live View: Up to 6 channels; API: ISAPI,SDK,Open Network Video Interface (Profile S, Profile T); Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP; User/Host: Up to 32 users
3 user levels: administrator, operator, and user; Client: iVMS-4200,Hik-Connect; Web Browser: Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+; Wide Dynamic Range (WDR): 120 dB; SNR: ≥ 52 dB; Day/Night Switch: Day,Night,Auto,Schedule; Image Enhancement: BLC,HLC,3D DNR; Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser; Privacy Mask: 4 programmable polygon privacy masks; Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port; Built-in Microphone: Yes; Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception; Linkage: notify surveillance center,send email,trigger capture; Power: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7.5 W; Material: Metal & Plastic; Dimension: Ø121.4 mm × 97.7 mm (Ø4.8″ × 3.8″); Package Dimension: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″); : Approx. 550 g (1.2 lb.); With Package Weight: Approx. 800 g (1.8 lb.); Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing); Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing); General Function: Heartbeat,anti-banding,mirror,password protection,password reset via email; EMC: FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7; Safety: UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1; Environment: CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006; Protection: IP67: IEC 60529-2013,IK08: IEC 62262:2002
