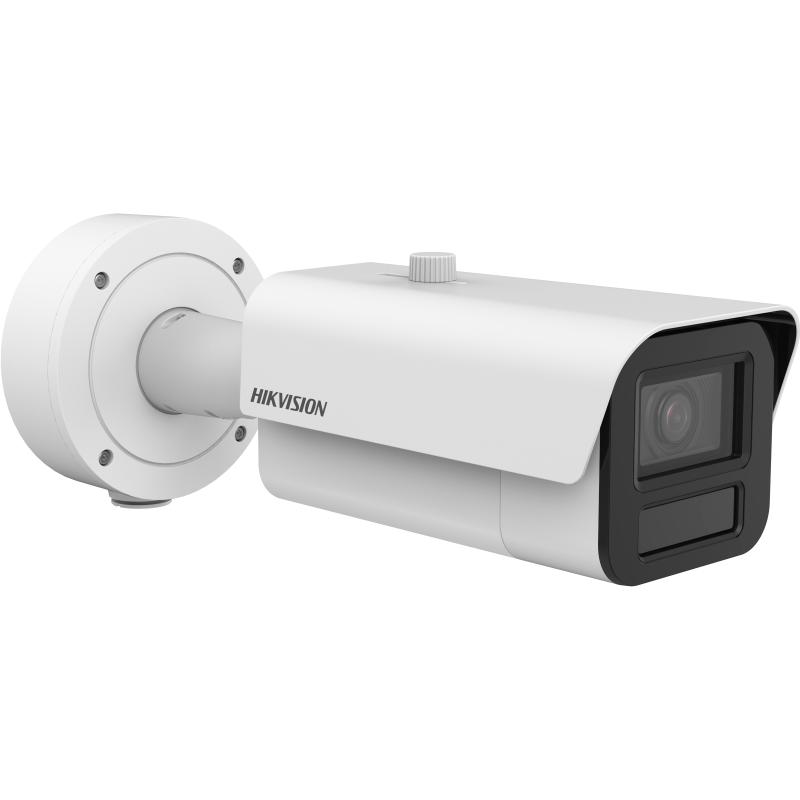

Hikvision 4MP DeepinView ANPR Moto Varifocal Bullet Camera

Specifications

Image Sensor: 1/1.8″ Progressive Scan CMOS; Max. Resolution: 2688 × 1520; Min. Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON);
B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR; Shutter Time: 1 s to 1/100,000 s; Day & Night: IR cut filter
Blue glass module to reduce ghost phenomenon; Focal Length & FOV: 2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°
8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°; Focus: Auto,Semi-auto,Manual; Iris Type: P-iris; Aperture: 2.8 to 12 mm: F1.2 to F2.5
8 to 32 mm: F1.7 to F1.73; DORI: Wide:
2.8 to 12 mm: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify): 6 m
8 to 32 mm: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I (Identify): 15 m
Tele:
2.8 to 12 mm: D (Detect): 149 m, O (Observe): 59.1 m, R (Recognize): 29.8 m, I (Identify): 14.9 m
8 to 32 mm: D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80 m, I (Identify): 40 m; Supplement Light Type: IR; Supplement Light Range: 2.8 to 12 mm: 50 m
8 to 32 mm: 100 m; Smart Supplement Light: Yes; IR Wavelength: 850 nm; Main Stream: 50 Hz:
25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz:
30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 fps (2560 × 1440, 1920 × 1080, 1280 × 720); Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480); Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480); Fourth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480); Fifth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480); Video Compression: Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
Fifth stream: H.265/H.264/MJPEG; Video Bit Rate: 32 Kbps to 8 Mbps; H.264 Type: Baseline Profile,Main Profile,High Profile; H.265 Type: Main Profile; Bit Rate Control: CBR,VBR; Scalable Video Coding (SVC): H.264 and H.265 encoding; Region of Interest (ROI): 4 fixed regions for each stream; Target Cropping: Yes; e-PTZ: Support Patrol and Auto Tracking settings; Audio Type: Mono sound; Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC; Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC); Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz; Environment Noise Filtering: Yes; Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets; Simultaneous Live View: Up to 20 channels; API: Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP; User/Host: Up to 32 users
3 user levels: administrator, operator, and user; Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256; Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.; Client: iVMS-4200,Hik-Connect,Hik-Central; Web Browser: Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+; Image Parameters Switch: Yes; Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser; Day/Night Switch: Day,Night,Auto,Schedule,Alarm Trigger,Video Trigger; Wide Dynamic Range (WDR): 140 dB; SNR: ≥ 52 dB; Image Enhancement: BLC,HLC,3D DNR,Distortion Correction,Defog; Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.; Image Stabilization: EIS; Privacy Mask: 8 programmable polygon privacy masks; Video Output: 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging); Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port; On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB; Audio: With -Y: 1 input (line in), 1 output (line out), 3.5 mm connector; Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A); RS-485: With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive); Reset Key: Yes; Power Output: With -Y: 12 VDC, max. 100 mA; Wiegand: -Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit); Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis,vibration detection; Smart Event: scene change detection,audio exception detection,defocus detection; Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning; Perimeter Protection: Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Support combined event alarm triggering; Road Traffic and Vehicle Detection: Smart Function:
Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.
Support vehicle and non-vehicle counting
Blocklist and allowlist: up to 10,000 records
LPR Countries/Regions:
4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions
Accuracy (Under recommended installation and lighting conditions):
License plate recognition rate ≥98%
Capture rate ≥99%
Driving direction accuracy rate ≥98%
Vehicle Capture Speed:
Front installation in checkpoint scenario: up to 120 km/h
Side installation: up to 80 km/h
Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode; Metadata: Intrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic; Parking Management: Support distant view mode and close view mode
Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm
Close view mode: support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm; Power: 12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block,
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W; Material: Aluminum alloy body; Dimension: Without -Y: Ø144 mm × 347 mm (Ø5.7″ × 13.7″)
With -Y: Ø140 mm × 351 mm (Ø5.5″ × 13.8″); Package Dimension: 405 mm × 190 mm × 180 mm (15.9″ × 7.5″ × 7.1″); : Approx. 1950 g (4.2 lb.); With Package Weight: Approx. 3070 g (6.7 lb.); Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing); Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing); Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; General Function: Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter; Heater: Yes; Device Management: Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces; EMC: FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015; Safety: UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1; Environment: CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006; Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002; Anti-Corrosion Protection: -Y: NEMA 4X (NEMA 250-2018); Automotive and Railway: EN50121-4; Other: PVC FREE
