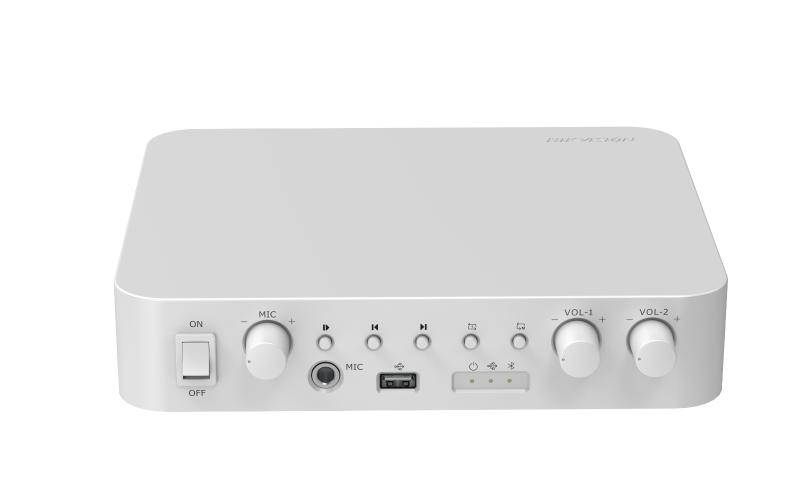

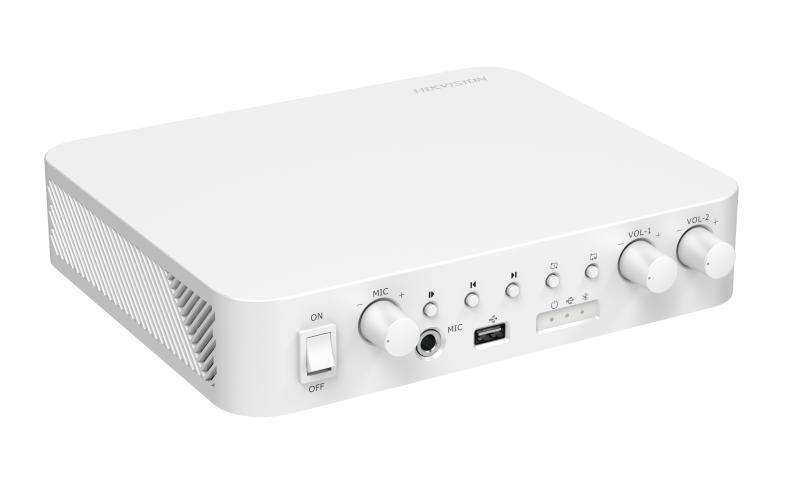

Hikvision Analog Amplifier 60W (DS-QAE0A60G1-VB)

Specifications

Protection Function: short circuit protection, overcurrent protection, over temperature protection, anti-static electricity protection, surge protection, electrical shock protection; Rated Power: 60 W
24 VDC; Frequency Response: USB, Bluetooth: 20 Hz to 20 kHz
MIC, RCA Input: 20 Hz to 8 kHz; THD and SNR: THD: ≤1%
SNR: ≥100 dB; Audio In: MIC 1: -20 dBV, 4 KΩ,unbalance, 6.35 mm jack
USB 2.0 × 1
RCA in 1: 0 dBV, 5 KΩ, unbalance, RCA pin jack
Bluetooth; Audio Out: Constant Voltage Output × 2，100 V COM
Constant Resistance Output × 2，30 W 4 Ω to 8 Ω
RCA Out 1: 0 dBV, 100 Ω, unbalance, RCA pin jack
RCA Cascading: support a cascade of up to 3 amplifiers
Bluetooth; LED Indicator: Power indicator (solid white): the device is normally working
USB flash drive indicator (solid white): the device is in USB mode
Bluetooth indicator (solid blue): the device is in Bluetooth mode
USB flash drive indicator (off) and Bluetooth indicator (off): the MIC input and RCA input are mixed; Volume Knob: MIC Volume Knob × 1，Partition 1 Volume Knob × 1，Partition 2 Volume Knob × 1; USB: USB 2.0
File format: FAT32
USB flash drive file playing logic: traverse play level 3 directory files in the USB flash drive.; Power Interface: Aperture size: Ø2.0 mm; Material: Plastic; Dimension: 190.8 mm × 230.8 mm × 51.2 mm (7.48″ × 9.06″ × 2.01″); Package Dimension: 362 mm × 280 mm × 100 mm (14.25″ × 11.02″ × 3.94″); : Approx. 1445.5 g (3.19 lb.); With Package Weight: Approx. 2113.3 g (4.66 lb.); Color: White; Packing List: Device × 1
Power Adapter × 1
Power Cord × 1
Regulatory Compliance and Safety Information × 1; Bluetooth: Bluetooth 5.3，10 m; Operating Temperature: -10 °C to 55 °C(14 °F to 131 °F); Operating Humidity: ＜90% (No condensation); Power Consumption: Standby Consumption: 1 W
Annual Average Consumption: Max. Working Consumption: 60 W (based on the average playing time)
