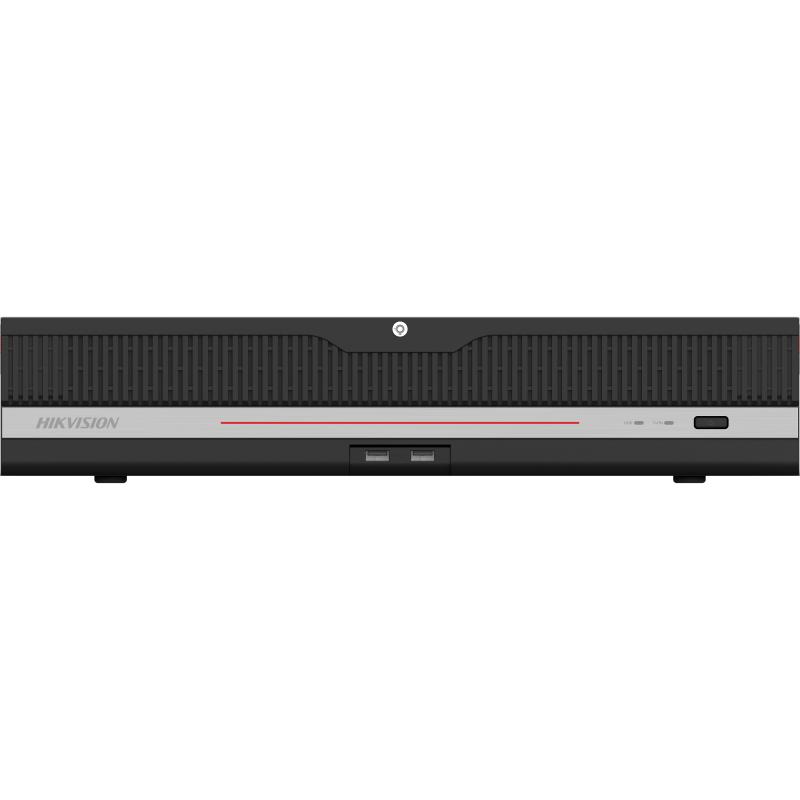

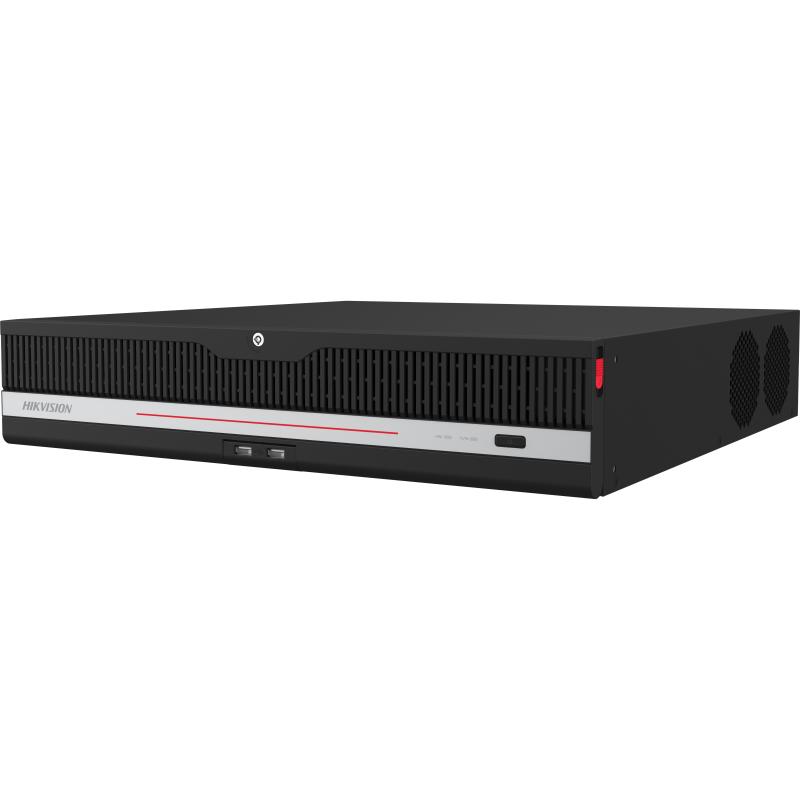

Hikvision NVR DeepinMind iDS-9632NXI-M8/AI(B)

Specifications

AI by NVR: Pre-installed AI Algorithm Package
Human ( 3 Algorithm models )
1. Facial recognition:
2. People counting: regional people counting, people counting statistics
3. PPE: safety helmets and reflective vests detection
Vehicle ( 2 Algorithm models )
1. Vehicle attributes: vehicle brand,vehicle color, vehicle type
2. Non-motorized vehicle detection: motorcycle, bicycles
Dangerous Event( 2 Algorithm models )
1. Fire and smoke detection
2. Occupation of fire escape
Behaviour ( 4 Algorithm models )
1. Street level behaviour : falling down detection, people gathering detection, fast
moving detection, physical conflict detection
2. Indoor: playing mobile phone, number of people exception, overstaying detection
3. Perimeter: intrusion detection, line crossing detection, region entrance detection,
region exiting detection
4. Smoke detection, call detection
AIOP (Up to 16 models)
Model type: detection model, classification model, mixed model (detection model and
classification model); Live Video Analysis: 2 engines in total,one engine can support up to 4ch,(4ch@4MP，2ch@6MP，1ch @8MP); Auto-Switch Video Analysis: 2 engines in total,one engine can support up to 16ch,(switch time between 10 to 3600 seconds); Scheduled Capture Analysis: 2 engines in total,one engine can support up to 16ch, (switch time between 3 to 3600 seconds); IP Video Input: 32-ch; Incoming Bandwidth: 320 Mbps; Outgoing Bandwidth: 400 Mbps; HDMI 1 Output: HDMI1：8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.; HDMI 2 Output: HDMI2：4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz; VGA 1 Output: 1080P (1920 × 1080)/60 Hz; VGA 2 Output: 1080P (1920 × 1080)/60 Hz; Video Output Mode: HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output; Audio Output: 1-ch, RCA (Linear, 1 KΩ); Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω); Decoding Format: H.265/H.265+/H.264/H.264+; Decoding Capability: Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080P; Synchronous Playback: 16-ch; Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.; Remote Connection: 128; Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS; API: ONVIF (profile S/G); SDK; ISAPI; Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version; Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface; RAID Type: RAID0, RAID1, RAID5, RAID6, RAID10; Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.; DC 12V: 12 VDC, 1 A power output; SATA: 8 SATA interfaces; 3.5-inch HDD; eSATA: 1 eSATA interface; Capacity: Up to 16 TB capacity for each HDD; Serial Interface: 1 RS-232, 1 RS-485 (full-duplex); USB Interface: Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0; Alarm In/Out: 16/9; GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian; Power Supply: 100 to 240 VAC, 50 to 60 Hz; Consumption: ≤ 50 W (without HDD); Working Temperature: -10 to 55° C (14 to 131° F); Working Humidity: 10 to 90%; Dimension (W × D × H): 442 × 460 × 88 mm; : ≤ 9 kg (without HDD)
