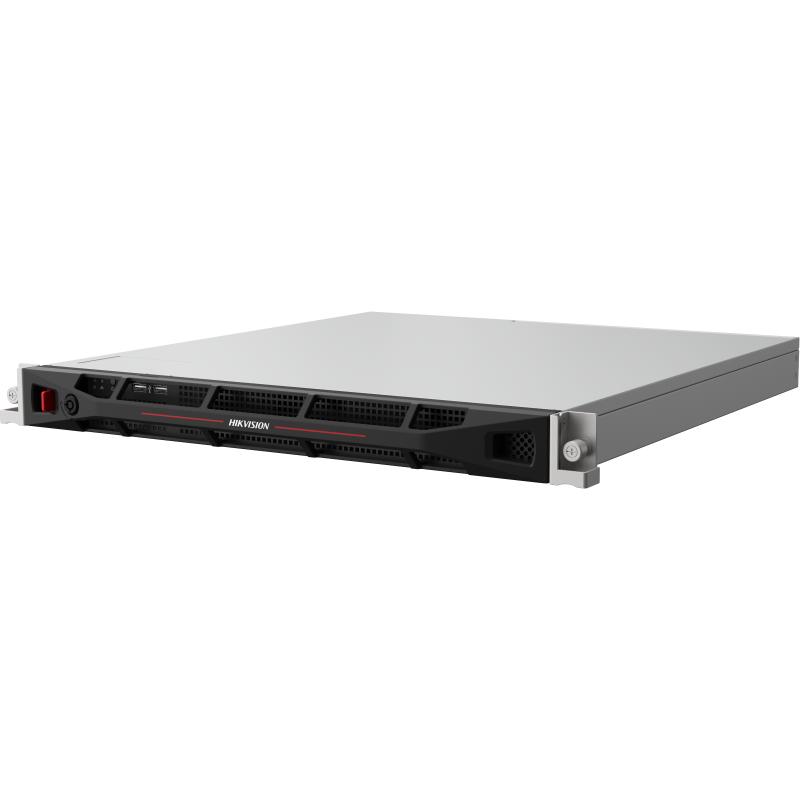

Hikvision NVS DeepinMind iDS-67064NXI-M1/AI(1×8T)

Specifications

EMMC: 64G eMMC; AI by NVR: Pre-installed AI Algorithm Package
Human (3 Algorithm models)
1. Facial recognition
2. People counting: regional people counting, people counting statistics
3. PPE: safety helmets and reflective vests detection
Vehicle (2 Algorithm models)
1. Vehicle attribute: vehicle brand, vehicle color, vehicle type
2. Non-motorized vehicle detection: motorcycle, bicycles
Dangerous Event (2 Algorithm models)
1. Fire and smoke detection
2. Occupation of fire escape
Behavior (4 Algorithm models)
1. Street level behavior: falling down detection, people gathering detection, fast moving detection, physical conflict detection
2. Indoor: playing mobile phone, number of people exception, overstaying detection
3. Perimeter: intrusion detection, line crossing detection, region entrance detection, region exiting detection
4. Smoke detection, call detection
AIOP (Up to 16 models)
Model type: detection model, classification model, mixed model (detection model and classification model).; Engine: 3 × GPU Card; IP Video Input: 64-ch
Up to 8 MP resolution; Incoming Bandwidth: 1024Mbps; Outgoing Bandwidth: 1024Mbps; HDMI Output: 1 × HDMI output; VGA Output: 1 × VGA output; Audio Output: 1-ch, 3.5mm interface; Two-Way Audio: 1-ch, 3.5mm interface; Decoding Format: H.265/H.265+/H.264/H.264+; Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF; Network Interface: 4, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface; Remote Connection: 128; Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS; Camera Access Protocol: ONVIF profile S; ONVIF profile T (Version 2.2); RTSP; Serial Interface: 1 RS-232, 2 RS-485 (half-duplex); Alarm In/Out: 8/4; USB Interface: Front panel: 2 × USB 2.0; Rear panel: 4 × USB 3.0; Power Supply: 100 to 240 VAC, 50 to 60 Hz, redundant power supply; Consumption: ≤ 140 W (without HDD); Working Temperature: -10 to 55° C (14 to 131° F); Working Humidity: 10 to 90%; Dimension (W × D × H): 436 × 470 × 43.6 mm (17.17″ × 18.50″ × 1.72″); : ≤ 20 kg (without HDD, 44.1 lb.); Obtained Certification: CE, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
