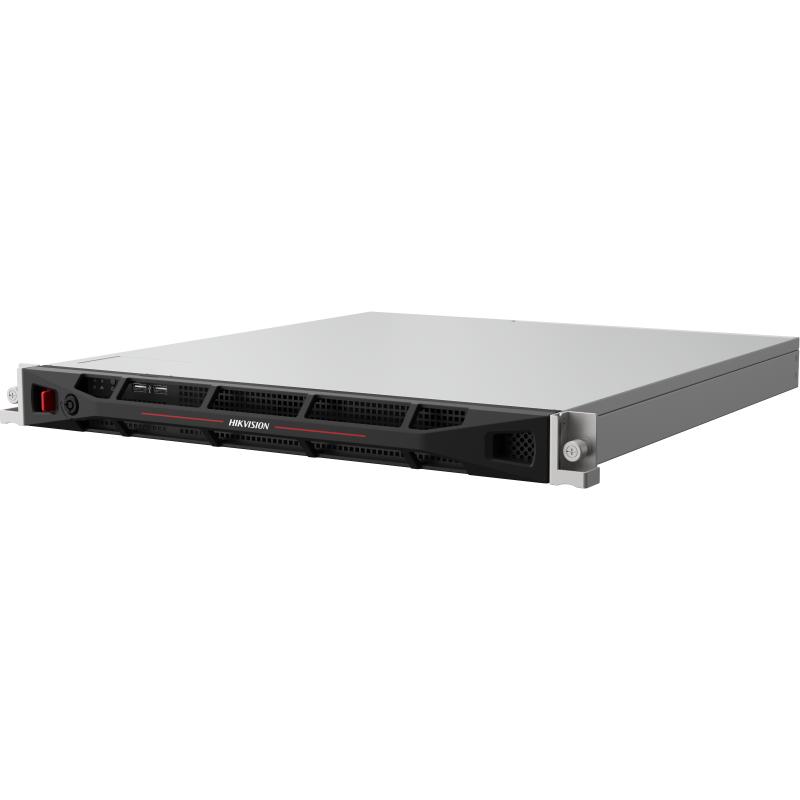

Hikvision NVS DeepinMind iDS-67128NXI-M1/AI(1×8T)

Specifications

EMMC: 64G eMMC; AI by NVR: Pre-installed AI Algorithm Package
Human ( 3 Algorithm models )
1. Facial recognition:
2. People counting: regional people counting, people counting statistics
3. PPE: safety helmets and reflective vests detection
Vehicle ( 2 Algorithm models )
1. Vehicle attributes: vehicle brand,vehicle color, vehicle type
2. Non-motorized vehicle detection: motorcycle, bicycles
Dangerous Event( 2 Algorithm models )
1. Fire and smoke detection
2. Occupation of fire escape
Behaviour ( 3 Algorithm models )
1. Street level behaviour : falling down detection, people gathering detection, fast moving detection, physical conflict detection
2. Indoor: playing mobile phone, number of people exception, overstaying detection
3. Perimeter: intrusion detection, line crossing detection, region entrance detection, region exiting detection
4. Smoke detection, call detection
AIOP (Up to 16 models)
Model type: detection model, classification model, mixed model (detection model and classification model).; Engine: 4 * GPU Card;; IP Video Input: 128-ch
Up to 8 MP resolution; Incoming Bandwidth: 1024Mbps; Outgoing Bandwidth: 1024Mbps; HDMI Output: 1*HDMI output; VGA Output: 1*VGA output; Audio Output: 1-ch, 3.5mm interface; Two-Way Audio: 1-ch, 3.5mm interface; Decoding Format: H.265/H.265+/H.264/H.264+; Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF; Network Interface: 4, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface; Remote Connection: 128; Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS; Camera Access Protocol: ONVIF profile S ; ONVIF profile T ; RTSP;; RAID Type: N/A; Serial Interface: 1 RS-232, 2 RS-485 (half-duplex); Alarm In/Out: 8/4; USB Interface: Front panel: 2 × USB 2.0; Rear panel: 4 × USB 3.0; Power Supply: 2* 550W CRPS power supply
100 to 240 VAC, 50 to 60 Hz; Consumption: ≤ 140 W; Working Temperature: -10 to 55° C (14 to 131° F); Working Humidity: 10 to 90%; Dimension (W × D × H): 436mm*470mm*43.6mm; : <=20KG; Obtained Certification: CE, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS（项目里报告核对更正）
