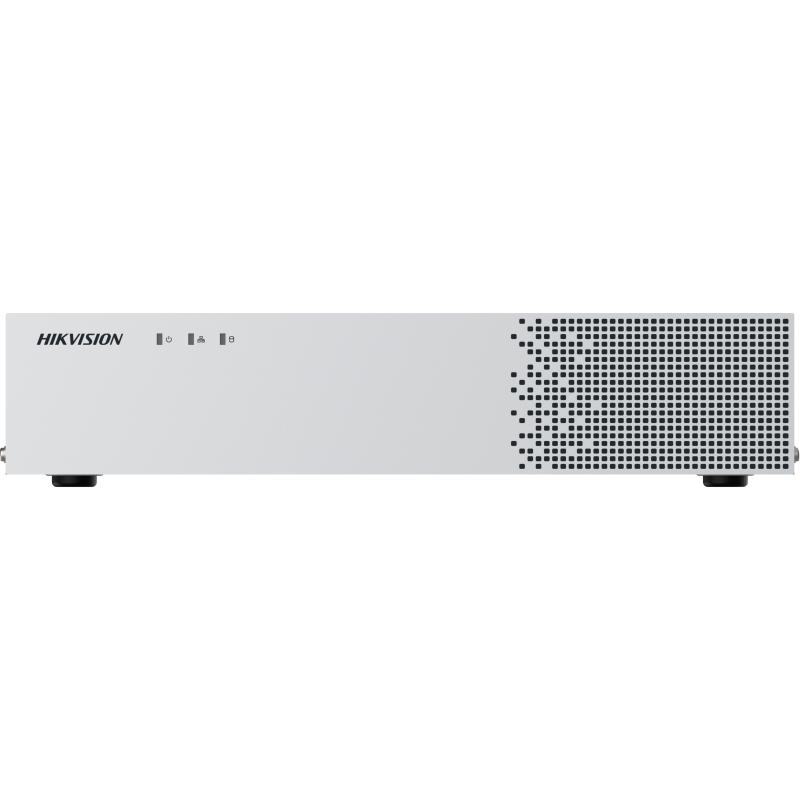

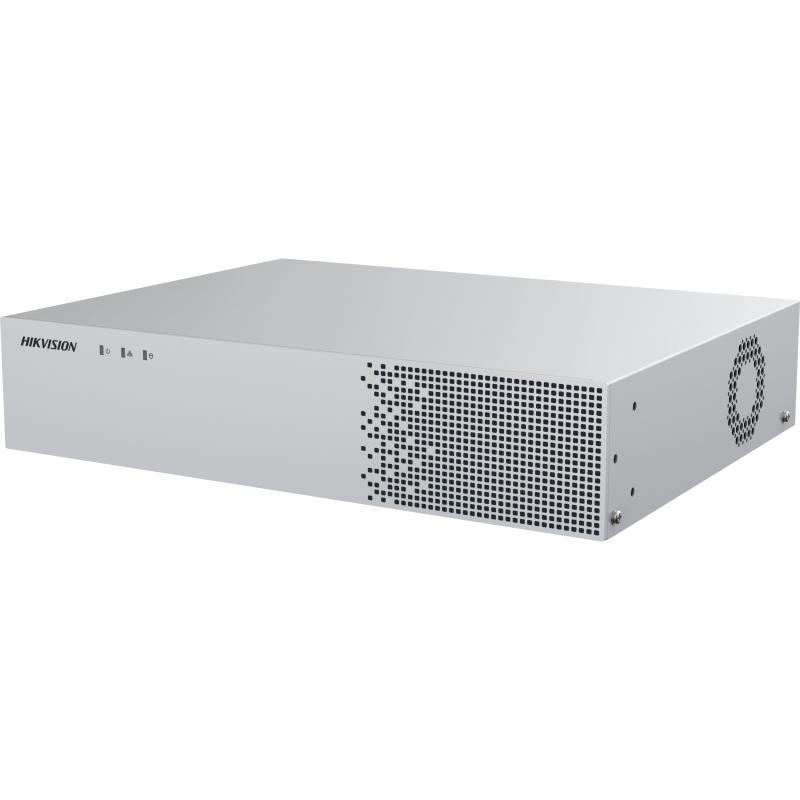

Hikvision NVS DeepinMind iDS-6732NXI-M1/AI(B)(1×1T)

Specifications

Live Video Analysis: 2 engines in total,one engine can support up to 4ch,(4ch@4MP，2ch@6MP，1ch @8MP); Auto-Switch Video Analysis: 2 engines in total,one engine can support up to 16ch,(switch time between 10 to 3600 seconds); Scheduled Capture Analysis: 2 engines in total,one engine can support up to 16ch, (switch time between 3 to 3600 seconds); IP Video Input: 32-ch; Incoming Bandwidth: 256Mbps; Outgoing Bandwidth: 256 Mbps; Video Output Mode: HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output; Audio Output: 1-ch, RCA (Linear, 1 KΩ); Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω); HDMI Output: HDMI1：8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz
HDMI2：4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.; VGA Output: VAG1/VGA2:1080P (1920 × 1080)/60 Hz; Decoding Format: H.265/H.265+/H.264/H.264+; Decoding Capability: Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080P; Synchronous Playback: 16-ch; Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
*: NVR supports up to 8-ch 32 MP/24 MP IP video inputs.; Remote Connection: 128; Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS; API: ONVIF (profile S/G); SDK; ISAPI; Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version; Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface; SATA: 1 SATA interface; Capacity: Up to 16 TB capacity for each HDD,1 built-in 3.5-inch 1 TB SATA hard disk; Serial Interface: 1 RS-232 interface, 2 RS-485 interface; USB Interface: Rear panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0; Alarm In/Out: 16/4; GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian; Power Supply: 12 VDC, 5A; Consumption: ≤ 60 W; Working Temperature: -10 to 55° C (14 to 131° F); Working Humidity: 10 to 90%; Dimension (W × D × H): 320 × 243 × 65 mm (12.6 × 9.6 × 2.6 inch); : ≤ 5kg
