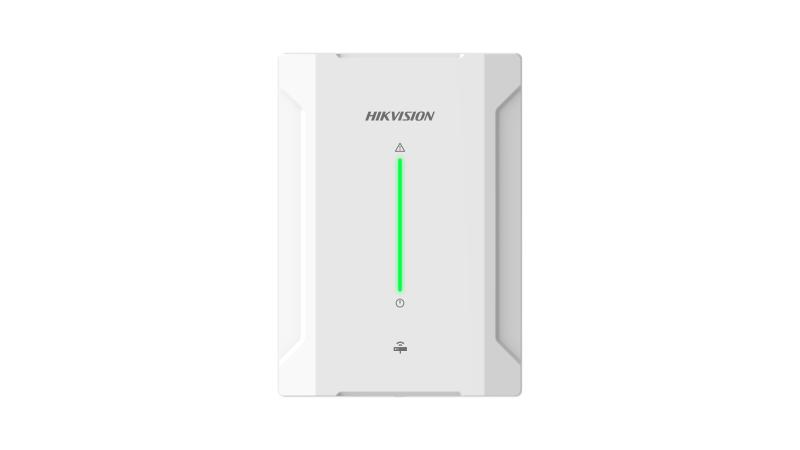

Hikvision Tri-X Wireless Receiver DS-PM1-RT-HWE

Name: Hikvision Tri-X Wireless Receiver DS-PM1-RT-HWE
Brand: Hikvision
SKU: DS-PM1-RT-HWE
Availability: InStock

Hikvision DS-PM1-RT-HWE wired relay module. Controls lights and garage doors, enhancing the functionality of an alarm system.

SKU: DS-PM1-RT-HWE Category: Wired Alarms Brand: Hikvision

Guaranteed Safe Checkout

The Hikvision DS-PM1-RT-HWE is a wired relay module for alarm systems. It is designed to control various devices, such as lights and garage doors, with the alarm system. The module is easy to install and is a reliable solution for enhancing the functionality of a security system.

Specifications

Compatibility list: DS-PS1-I-WE
DS-PS1-E-WE
DS-PM1-O1L-WE
DS-PM1-O1H-WE
DS-PDP15P-EG2-WE
DS-PDC15-EG2-WE
DS-PDD12P-EG2-WE
DS-PDMC-EG2-WE
DS-PDMCS-EG2-WE
DS-PDEB1-EG2-WE
DS-PDEBP1-EG2-WE
DS-PDWL-E-WE
DS-PDPG12P-EG2-WE
DS-PDMCK-EG2-WE
DS-PDTPH-E-WE
DS-PDCL12-EG2-WE
DS-PDC10AM-EG2-WE
DS-PDC10DM-EG2-WE; Bus: 1 Speed-X bus; LED Indicator: 1. Green: power/find me
2. Orange: alarm/fault; Power supply: 9 to 24 VDC; Typical voltage: 12 VDC; Power consumption: Maximum current: 100 mA@12 VDC
Quiescent current:40 mA@12 VDC; RF frequency: 868 MHz; Wireless security: Frequency hoping 128 AES encryption; Dimension(WxHxD): 110 mm × 155 mm × 32 mm; Shell material: Plastic; : 225 g; Operation temperature: -10°C to 40°C; Operation humidity: 10% to 90%; Alarm input: Up to 32 wireless detectors(portable emergency button is not included); Wireless sounder: Up to 8 wireless indoor sounder, 4 wireless outdoor sounder
