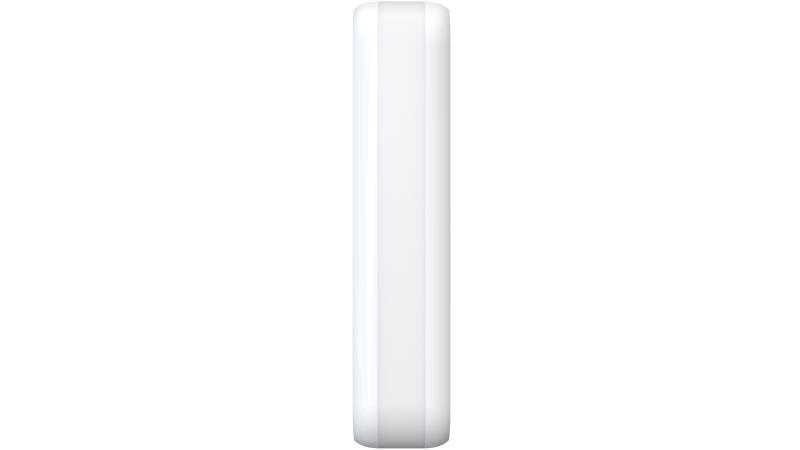

Hikvision Wired Dual-Tech AM Curtain Detector DS-PDC10DM-VG3

Name: Hikvision Wired Dual-Tech AM Curtain Detector DS-PDC10DM-VG3
Brand: Hikvision
SKU: DS-PDC10DM-VG3
Availability: InStock

Hikvision DS-PDC10DM-VG3 wireless curtain detector. Detects motion in a curtain-shaped area for narrow passages, doors, and windows.

SKU: DS-PDC10DM-VG3 Category: Wired Alarms Brand: Hikvision

Guaranteed Safe Checkout

The Hikvision DS-PDC10DM-VG3 is a wireless curtain detector for alarm systems. It is designed to detect motion in a curtain-shaped area and provides an instant alert to the control panel. The detector is easy to install and is a reliable solution for securing narrow passages, doors, and windows in residential and commercial properties.

Specifications

Detection Method: Passive Infrared;Microwave; Detection Range: Wall Mount：10m
Ceiling Mount：6m; Detection Angle: 5°; Detection Zones: 32; Detectable Speed: 0.2～3m/s; Sensitivity: Auto; White Light Filter: 6500lux; Microwave Frequency: 24GHz(24.15～24.25GHz); Digital Temperature Compensation: Support; Creep Zone Protection: Support; Anti-masking: Support; Digital Processing: Support; Sealed Optics: Support; Tamper Protection: Front;Rear; Directional Detection: Support; Alarm Output: Normally Closed; LED Indicator: Green(PIR), Red(Microwave), Green+Orange(Mask), Blue(Alarm); Transmission Method: Wired; Power Supply: 9 to 16 VDC; Typical Voltage: 12 VDC; Power Consumption: Maximum current：25mA@12VDC
Quiescent current：16mA@12VDC; Operation Temperature: -25 °C to 60 °C (-13 °F to 140 °F); Storage Temperature: -25 °C to 60 °C (-13 °F to 140 °F); Operation Humidity: 10% to 90%; IP Rate: IP65; Dimension(WxHxD): 29.2mm × 134.4mm × 39.5mm; : 79g; Mounting Height: 2 to 4m; Mounting Method: Wall;Ceiling; Application Scenario: Indoor,Outdoor; Bracket: L-shaped adapter included
