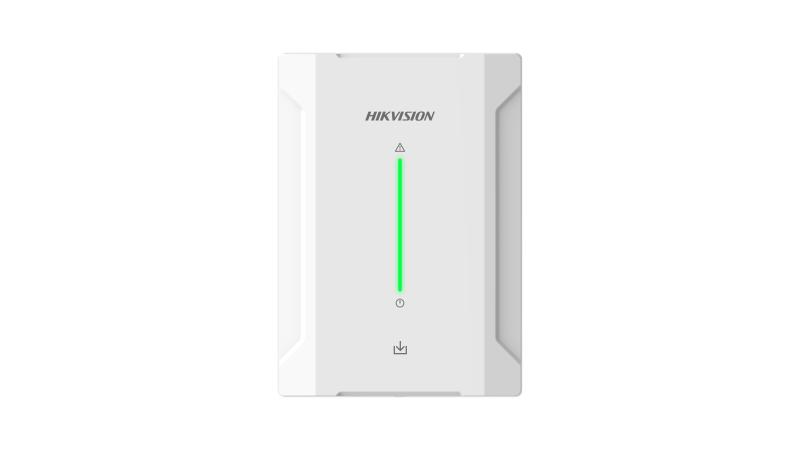

Hikvision Wired Input Expander（Cascade） DS-PM1-I8O2-H

Name: Hikvision Wired Input Expander（Cascade） DS-PM1-I8O2-H
Brand: Hikvision
SKU: DS-PM1-I8O2-H
Availability: InStock

Hikvision DS-PM1-I8O2-H wired relay module. 8 inputs and 2 outputs for controlling a wide range of devices with the alarm system.

SKU: DS-PM1-I8O2-H Category: Wired Alarms Brand: Hikvision

Guaranteed Safe Checkout

The Hikvision DS-PM1-I8O2-H is a wired relay module for alarm systems. It features 8 inputs and 2 outputs, allowing for the control of a large number of devices. The module is easy to install and is a reliable solution for enhancing the functionality of a security system.

Specifications

Alarm input: 8; IO Output: 2 (connect to relay module); Bus: 2×Speed-X bus, 1 input for control panel connection and 1 output for expander cascading; Tamper-Proof: Support (front and rear); LED Indicator: LED indicators: 1 for power, 1 for fault; Power supply: 11 to 24 VDC; Typical voltage: 12 VDC; Power consumption: Maximum current: 119 mA@12 VDC
Quiescent current: 45 mA@12 VDC; Output Voltage: 9 to 12 VDC; Output Current: Maximum 500 mA; Operation temperature: -10°C to 40°C; Operation humidity: 10% to 90%; Shell material: Plastic; Dimension(WxHxD): 110 mm × 155 mm × 32 mm; : 252.5 g
