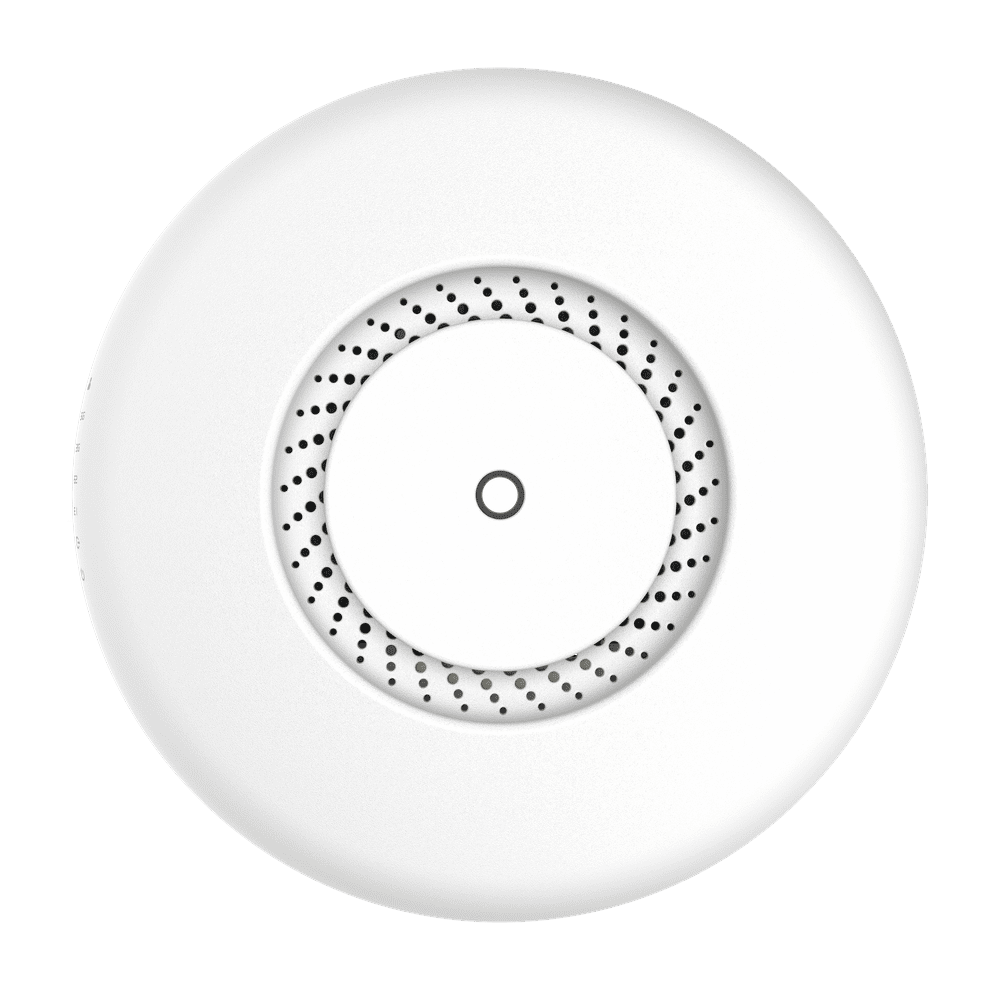

Achieve seamless and discreet wireless coverage with the MikroTik cAP ac, a powerful dual-band access point designed for both walls and ceilings, available at Bridge Technologies. Its elegant design ensures it blends effortlessly into any environment, from offices and hotels to retail spaces.
The cAP ac provides concurrent dual-band Wi-Fi, supporting 2.4 GHz (802.11b/g/n) and 5 GHz (802.11a/n/ac) simultaneously. With dual-chain radios on both bands, it delivers 360-degree coverage and combined speeds up to AC1200 (300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz), ensuring fast and reliable connections for all your devices.
Powered by a robust 4-core 716 MHz IPQ-4018 CPU and 128 MB of RAM, this access point handles high user density and demanding network tasks with ease. It features two Gigabit Ethernet ports, with the first supporting 802.3af/at PoE input and the second offering passive PoE output (up to 57V). This PoE passthrough capability simplifies installations by allowing you to power other devices like IP cameras or additional access points directly from the cAP ac.
The cAP ac runs MikroTik’s feature-rich RouterOS (License Level 4), giving you full control over network configurations, including advanced routing, firewall rules, bandwidth management, and VPN support with IPsec hardware acceleration. It even includes a customizable mode button that can be configured to turn off lights and sounds for an even more inconspicuous presence.
Choose the MikroTik cAP ac for a high-performance, aesthetically pleasing, and versatile wireless solution that offers enterprise-grade features at a competitive price, ideal for professional Wi-Fi deployments.
Specifications
{
“Specifications – Product code”: “RBcAPGi-5acD2nD”,
“Specifications – Architecture”: “ARM 32bit”,
“Specifications – CPU”: “IPQ-4018”,
“Specifications – CPU core count”: “4”,
“Specifications – CPU nominal frequency”: “488-896 (auto) MHz”,
“Specifications – Switch chip model”: “IPQ-4018”,

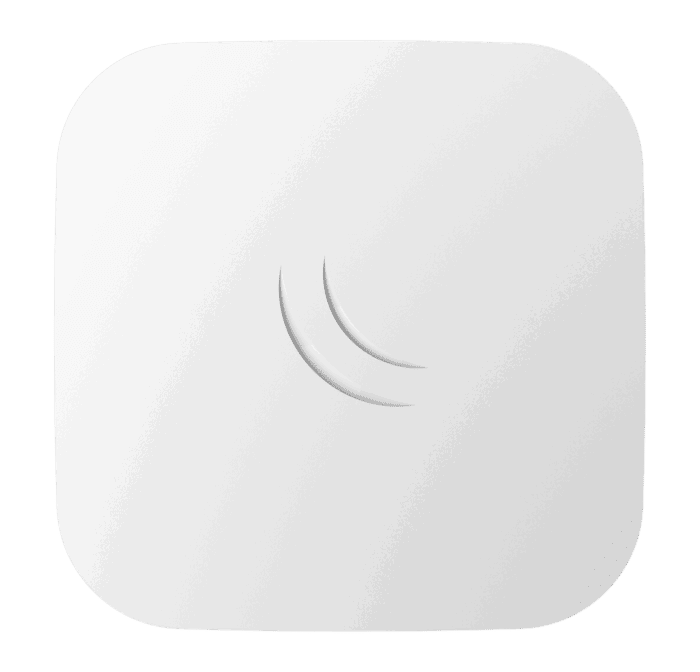

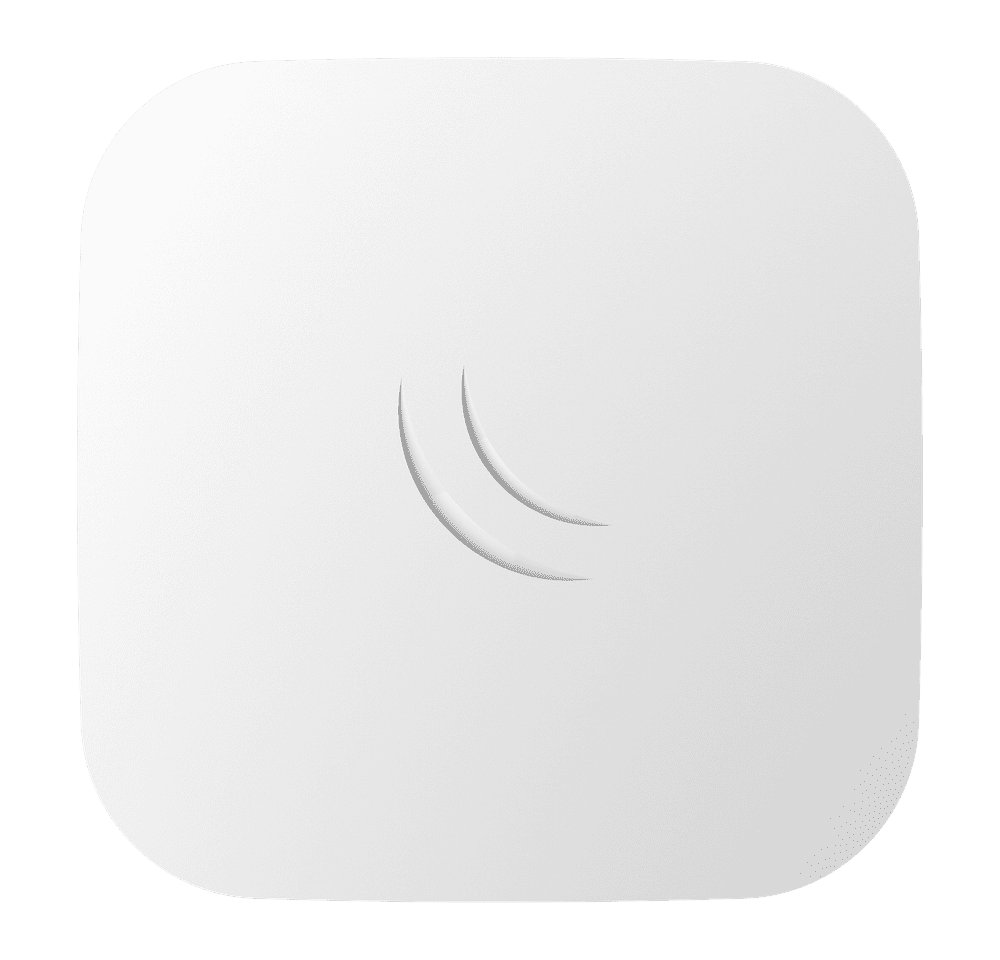

“Specifications – Dimensions”: “Round case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm”,
“Specifications – RouterOS license”: “4”,
“Specifications – Operating System”: “RouterOS”,
“Specifications – Size of RAM”: “128 MB”,
“Specifications – Storage size”: “16 MB”,
“Specifications – Storage type”: “FLASH”,
“Specifications – MTBF”: “Approximately 100’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-40°C to 50°C”,
“Specifications – IPsec hardware acceleration”: “Yes”,
“Specifications – Suggested price”: “$85.00”,
“Wireless capabilities – Wireless 2.4 GHz Max data rate”: “300 Mbit/s”,
“Wireless capabilities – Wireless 2.4 GHz number of chains”: “2”,
“Wireless capabilities – Wireless 2.4 GHz standards”: “802.11b/g/n”,
“Wireless capabilities – Antenna gain dBi for 2.4 GHz”: “2”,
“Wireless capabilities – Wireless 2.4 GHz chip model”: “IPQ-4018”,
“Wireless capabilities – Wireless 2.4 GHz generation”: “Wi-Fi 4”,
“Wireless capabilities – Wireless 5 GHz Max data rate”: “867 Mbit/s”,
“Wireless capabilities – Wireless 5 GHz number of chains”: “2”,
“Wireless capabilities – Wireless 5 GHz standards”: “802.11a/n/ac”,
“Wireless capabilities – Antenna gain dBi for 5 GHz”: “2.5”,
“Wireless capabilities – Wireless 5 GHz chip model”: “IPQ-4018”,
“Wireless capabilities – Wireless 5 GHz generation”: “Wi-Fi 5”,
“Wireless capabilities – WiFi speed”: “AC1200”,
“Ethernet – 10/100/1000 Ethernet ports”: “2”,
“Powering – Number of DC inputs”: “1 (PoE-IN)”,
“Powering – Max power consumption”: “24 W”,
“Powering – Max power consumption without attachments”: “12 W”,
“Powering – Cooling type”: “Passive”,
“Powering – PoE in”: “802.3af/at”,
“Powering – PoE in input Voltage”: “17-57 V”,
“PoE-out – PoE-out ports”: “Ether2”,
“PoE-out – PoE out”: “Passive PoE up to 57V”,
“PoE-out – Max out per port output (input 18-30 V)”: “500 mA”,
“PoE-out – Max out per port output (input 30-57 V)”: “400 mA”,
“PoE-out – Max total out (A)”: “500 mA”,
“Certification & Approvals – Certification”: “CE, FCC, IC, EAC, ROHS”,
“Certification & Approvals – IP”: “20”,
“Other – Mode button”: “Yes”,
“Wireless specifications – 1MBit/s”: “26”,
“Wireless specifications – 11MBit/s”: “26”,
“Wireless specifications – 6MBit/s”: “26”,
“Wireless specifications – 54MBit/s”: “21”,
“Wireless specifications – MCS0”: “26”,
“Wireless specifications – MCS7”: “20”,
“Wireless specifications – MCS9”: “18”
}
