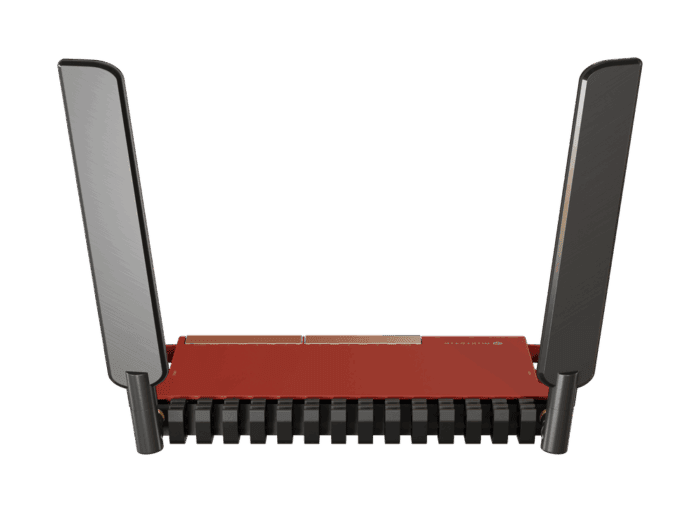

Upgrade your network with the MikroTik L009UiGS-2HaxD-IN, available at Bridge Technologies. This versatile router offers a significant leap in performance and features over previous generations. It is an ideal choice for both home and small office environments.
The L009UiGS-2HaxD-IN boasts a powerful dual-core ARM CPU. This delivers enhanced routing, filtering, and IPsec hardware encryption capabilities. It also supports Wi-Fi 6 (802.11ax) on the 2.4 GHz band. This provides up to 90% higher speeds and improved stability.
Connectivity options are abundant. There are eight Gigabit Ethernet ports, with PoE-in on the first port and PoE-out on the last. Additionally, a 2.5 Gigabit SFP cage supports high-speed fiber or copper connections. A USB 3.0 port allows for custom container projects, such as running a Pi-hole ad blocker.
The innovative enclosure also serves as a large heatsink, ensuring optimal thermal performance. It supports mounting up to four units in a single 1U rackmount space. This maximizes efficiency in server rooms. Running MikroTik’s robust RouterOS v7, the L009UiGS-2HaxD-IN offers advanced network management and configuration options.
Choose the MikroTik L009UiGS-2HaxD-IN for a powerful, flexible, and space-efficient networking solution. It’s designed to meet diverse connectivity needs with ease.
Specifications
{
“Specifications – Product code”: “L009UiGS-2HaxD-IN”,
“Specifications – Architecture”: “ARM”,
“Specifications – CPU”: “IPQ-5018”,
“Specifications – CPU core count”: “2”,
“Specifications – CPU nominal frequency”: “800 MHz”,
“Specifications – Switch chip model”: “88E6190”,
“Specifications – RouterOS license”: “5”,
“Specifications – Operating System”: “RouterOS v7”,
“Specifications – Size of RAM”: “512 MB”,
“Specifications – Storage size”: “128 MB”,
“Specifications – Storage type”: “NAND”,
“Specifications – MTBF”: “Approximately 200’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-40°C to 70°C”,
“Specifications – Suggested price”: “$129.00”,
“Wireless capabilities – Wireless 2.4 GHz Max data rate”: “574 Mbit/s”,
“Wireless capabilities – Wireless 2.4 GHz number of chains”: “2”,
“Wireless capabilities – Wireless 2.4 GHz standards”: “802.11b/g/n/ax”,
“Wireless capabilities – Antenna gain dBi for 2.4 GHz”: “4”,
“Wireless capabilities – Wireless 2.4 GHz chip model”: “IPQ-5018”,
“Wireless capabilities – Wireless 2.4 GHz generation”: “Wi-Fi 6”,
“Wireless capabilities – WiFi speed”: “AX600”,
“Ethernet – 10/100/1000 Ethernet ports”: “8”,
“Ethernet – Number of 1G Ethernet ports with PoE-out”: “1”,
“Fiber – SFP ports”: “1 (2.5G supported)”,
“Peripherals – Serial console port”: “RJ45”,
“Peripherals – Number of USB ports”: “1”,
“Peripherals – USB Power Reset”: “Yes”,
“Peripherals – USB slot type”: “USB 3.0 type A”,
“Peripherals – Max USB current (A)”: “1.5”,
“Powering – Number of DC inputs”: “2 (PoE-IN, DC jack)”,
“Powering – DC jack input Voltage”: “24-56 V”,
“Powering – Max power consumption”: “47 W”,
“Powering – Max power consumption without attachments”: “14 W”,
“Powering – Cooling type”: “Passive”,
“Powering – PoE in”: “802.3af/at”,
“Powering – PoE in input Voltage”: “24-56 V”,
“PoE-out – PoE-out ports”: “Ether8”,
“PoE-out – PoE out”: “Passive PoE”,
“PoE-out – Max out per port output (input 18-30 V)”: “1 A”,
“PoE-out – Max out per port output (input 30-57 V)”: “450 mA”,
“PoE-out – Max total out (A)”: “1.0 A”,
“Certification & Approvals – Certification”: “CE, FCC, IC, EAC, ROHS”,
“Certification & Approvals – IP”: “20”,
“Other – Mode button”: “Yes”,
“Wireless specifications – 1MBit/s”: “27”,
“Wireless specifications – 11MBit/s”: “27”,
“Wireless specifications – 6MBit/s”: “30”,
“Wireless specifications – 54MBit/s”: “28”,
“Wireless specifications – MCS0”: “30”,
“Wireless specifications – MCS7”: “27”,
“Wireless specifications – MCS9”: “25”,
“Wireless specifications – MCS11”: “23”
}
